Body (carrier)

3 side opening

Model name

KC

 KC power steering

KC air conditioner
Power steering

KC power steering
 specification

Car name model

Suzuki · EBD-DA63T

Transmission
(Model code)

2WD 5-speed manual

 KKCF-T

- -

 KKCF-SPT

- -

2WD 3-speed automatic

- -

- -

 KKCA-SPT

- -

High-low switching part-time 4WD 5-speed manual

 KKCJ-T

KKCJ-PT

 KKCJ-SPT [SPDT]

KKCJ-PGT

Part-time 4WD 3-speed automatic

- -

- -

KKCR-SPT [SPDT]

- -

Dimensions and weight

Total length (in)

 134

Overall width (in)

58

Height (in)

  70.5

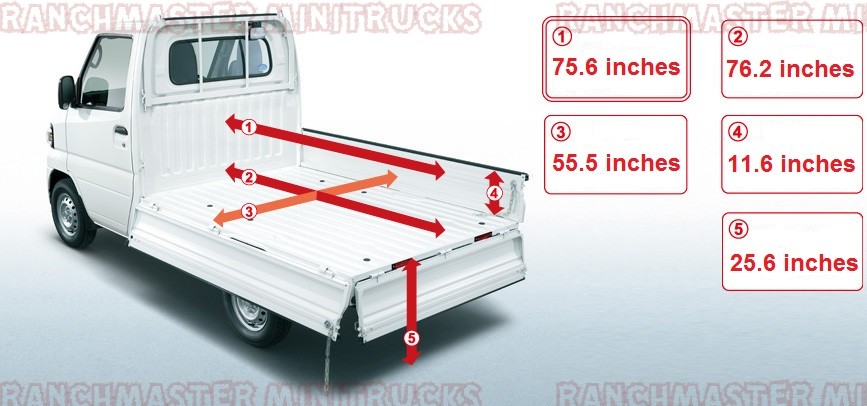

Bed Dimensions (in)

Length

76

Width

                                         55.5

55

Height

                                         11.4

12

Wheelbase (in)

92.5

Tread (mm)

Front

1,305

Rear

1,290

Ground clearance (in)

6.3

Loading platform floor ground clearance (in)

25.2

Weight (lbs.)

2WD MT

1543

- -

1565

- -

2WD AT

- -

- -

1587

- -

4WD MT

1653

1675 [1697]

1653

4WD AT

- -

- -

1697 [1719]

- -

Maximum loading capacity (lbs.)

350 770

Riding Capacity (Person)

2 Two

Performance

Fuel consumption rate (mpg)

2WD MT 2WD MT

38.5

- -

38.5

- -

2WD AT 2WD AT

- -

- -

36.22

- -

4WD MT 4WD MT

37.16

4WD AT 4WD AT

- -

- -

34.8

- -

Key measures to improve fuel economy

Electronically-controlled fuel injection

Minimum turning radius (ft.)

12.5

Engine

Model, type

3-cylinder water-cooled series K6A

Valve system

DOHC12 valve

 Bore × stroke (mm)

68.0 × 60.4

Total displacement (L)

0.658

Compression ratio

10.5

Fuel supply system

EPI (electronic fuel injection)

Maximum power (hp / rpm) net

46.9  / 5,500

Maximum torque (Ft Lbs. / rpm) net

45.7  / 4,000

Fuel tank capacity (Gallons)

10.5

Fuel use

Unleaded regular gasoline

Steering

Gear format

 Rack and pinion

Brake

Main brake format

Front

 Disk

Rear

 Leading trailing

Brake booster

Vacuum boost formula

Braking force control device

                          Proportioning equipment [ABS ·  proportioning equipment]

Parking brake format

Two-wheel braking after mechanical

Suspension

Suspension

Front

McPherson strut type coil spring

Rear

Leaf spring

Tire

145R12-6PR LT

Power transmission device

2WD
5-speed Manual

2WD
3-speed automatic

Switching type two-stage high-low speed
Part-time 4WD
5-speed Manual

Part-time 4WD
3-speed automatic

Transmission gear ratio

1 speed

5.106

2.727

5.106

2.727

2-speed

3.017

1.536

3.017

1.536

3-speed

1.908

1.000

1.908

1.000

4-speed

1.264

- -

1.264

- -

 Fifth

1.000

- -

1.000

- -

Reverse

5.151

2.222

5.151

2.222

Transfer
(Auxiliary transmission)

High speed gear ratio

- -

- -

1.000

- -

Low speed gear ratio

- -

- -

1.731

- -

Final reduction ratio

5.375

6.142

5.375

6.142
